MAC2026b
| Census ID | MAC2026b |
|---|---|
| Location | Igreja da Natividade de Nossa Senhora (Igreja da Sé), Macau |
| Builder | Casavant, op. 3925 |
| Specs | IV/67+Ped. (54 ranks) |
| Action | Electric |
MAC2026b is a four-manual and pedal Casavant organ in the Roman Catholic Cathedral (Igreja da Sé) in Macau SAR. The project was begun in 2016, with installation planned for 2018. But this was delayed by necessary structural work in the building, and the COVID-19 epidemic. It was finally installed in late 2025, and dedicated on 25 February 2026 by French organist, Thierry Escaich. With 2, 830 pipes, it is a largest church organ in the Pearl Delta Region bounded by Hong Kong, Macau, and Guangzhou.
The Antiphonal division, located in a narrow balcony at the back to the Cathedral, has its own console to control the Antiphonal organ, and also part of the main organ. This is where the choir sings from. Another feature is the Trompette pontificale 8′, set as a chamade stop in the façade of the main organ. This rank has its own high-pressure windchest.
The specs are:
| Grande-Orgue (I) |
Principal Montre Principal Flûte à Cheminée Flûte harmonique Prestant Flûte douce Quinte Doublette Cornet IV Fourniture IV Trompette Trompette pontificale |
16 8 8 (ext.) 8 8 4 4 2 2/3 2
8 8
|
| Récit (II) (Expressif) |
Bourdon doux Diapason Bourdon Viole de gambe Voix céleste Principal Flûte octaviante Nasard Piccolo Tierce Plein Jeu II-V Basson Trompette Hautbois Trompette pontificale (from G-O) |
16 (ext.) 8 8 8 8 4 4 2 2/3 2 1 3/5
16 8 8 8
|
| Positif (III) (Expressif) |
Principal Bourdon Voix éolienne (from Tenor C) Violon Flûte à Fuseau Octave Larigot Clarinette Trompette pontificale |
8 8 8 4 4 2 1 1/3 8 16, 8, 4 |
| Antiphonal (IV) |
Violonbasse (in façade towers) Montre Violoncelle Bourdon Prestant Flûte à Cheminée Doublette (Ped.) Violonbasse (Ped.) Montre (Ped.) Bourdon (Ped.) Prestant |
16 (ext.) 8 8 8 4 4 (ext.) 2 (ext.) 16 (ext.) 8 (ext.) 8 (ext.) 4 (ext.) |
| Pédale |
Soubasse Contrebasse Montre Principal Soubasse Bourdon Grande Quinte Octavebasse Flûte bouchée Bourdon Octave Théorbe II Bombarde Basson Trompette Trompette pontificale |
32 (ext.) 16 16 16 16 16 10 2/3 8 (ext.) 8 (ext.) 8 (from Récit) 4 6 2/5 16 16 (from Récit) 8 (ext. of Bombarde) 16, 8
|
| Couplers | Grande-Orgue Unison off, G-O/Ped. 8, G-O/Ped. 4; Récit 4, Récit 16, Récit Unison off, Récit/Ped. 8, Réc./Ped. 4, Réc./G-O 16, 8, 4, Réc/Pos. 16, 8, 4; Positif 16, Positif 4, Positif Union off, Positif/Ped. 8, Pos./Ped 4, Pos./G-O 16, 8, 4; Antiphonal/Ped. 8, Ant./G-O 8, Ant./Pos. 8, Ant./Réc. 8. | |
| Accessories | G-O Trémolo; Manual Transfer I-II; Zimbelstern. Adjustable combination action, electronic capture system, 256 levels of memory (10 generals, 4 for each manual, 3 for Ped.), divisional cancels, Memory Up/Down, General Next/Previous, Adjuster, and Adjuster Lock (numerical). |

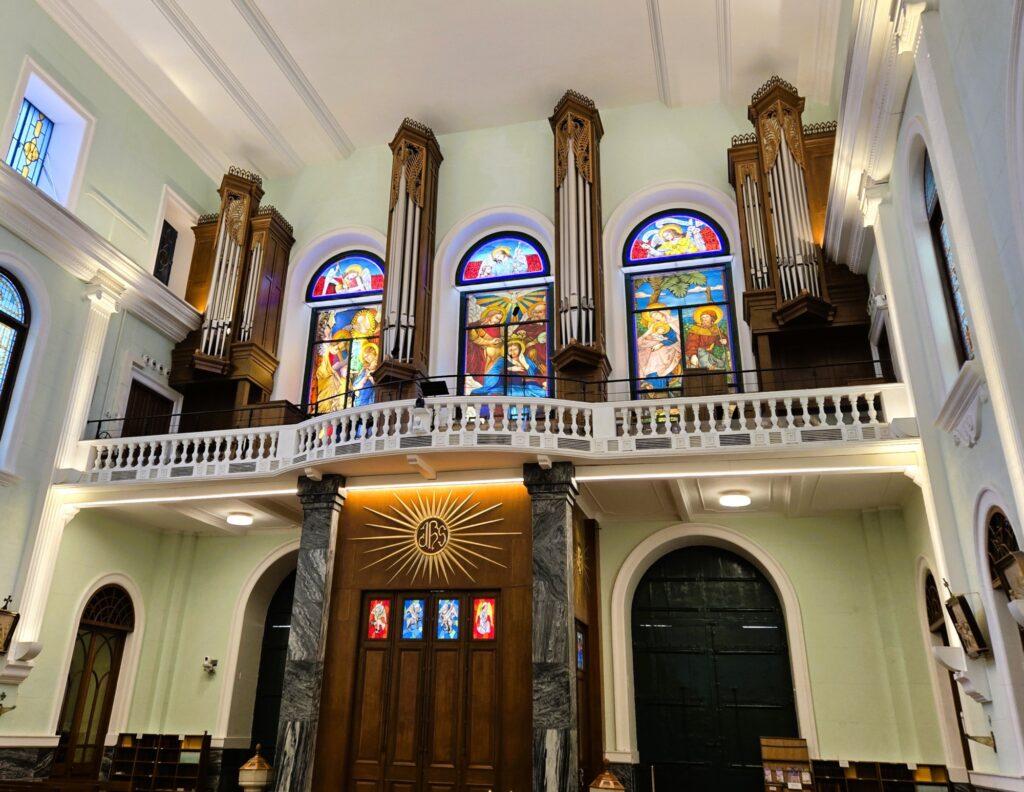

MAC2026b, Antiphonal organ

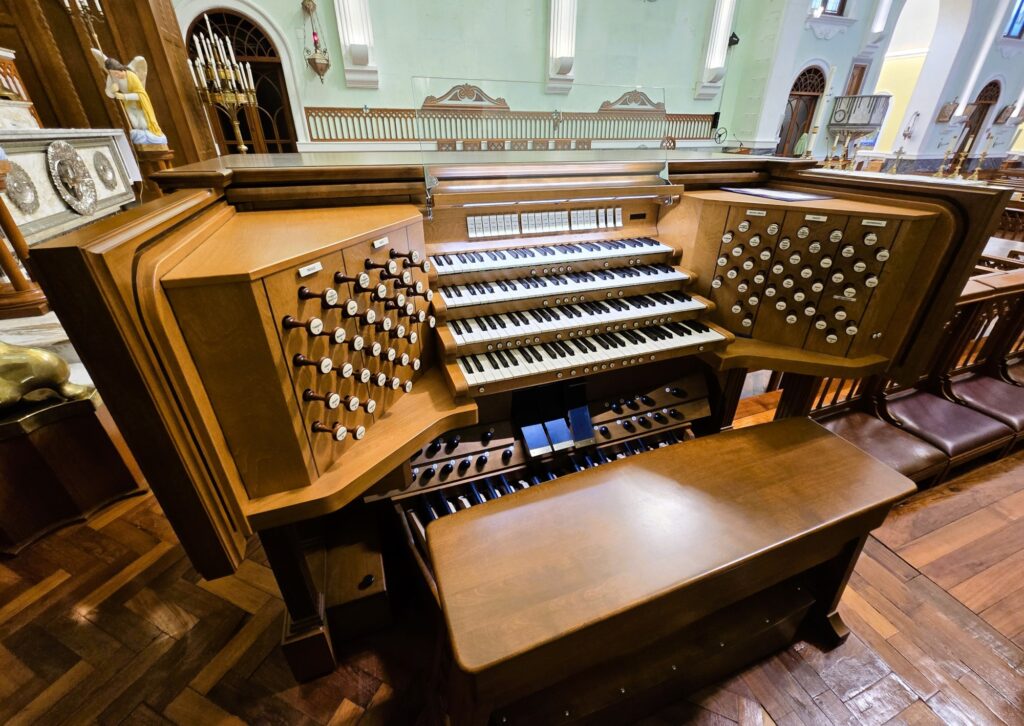

MAC2026b, main console

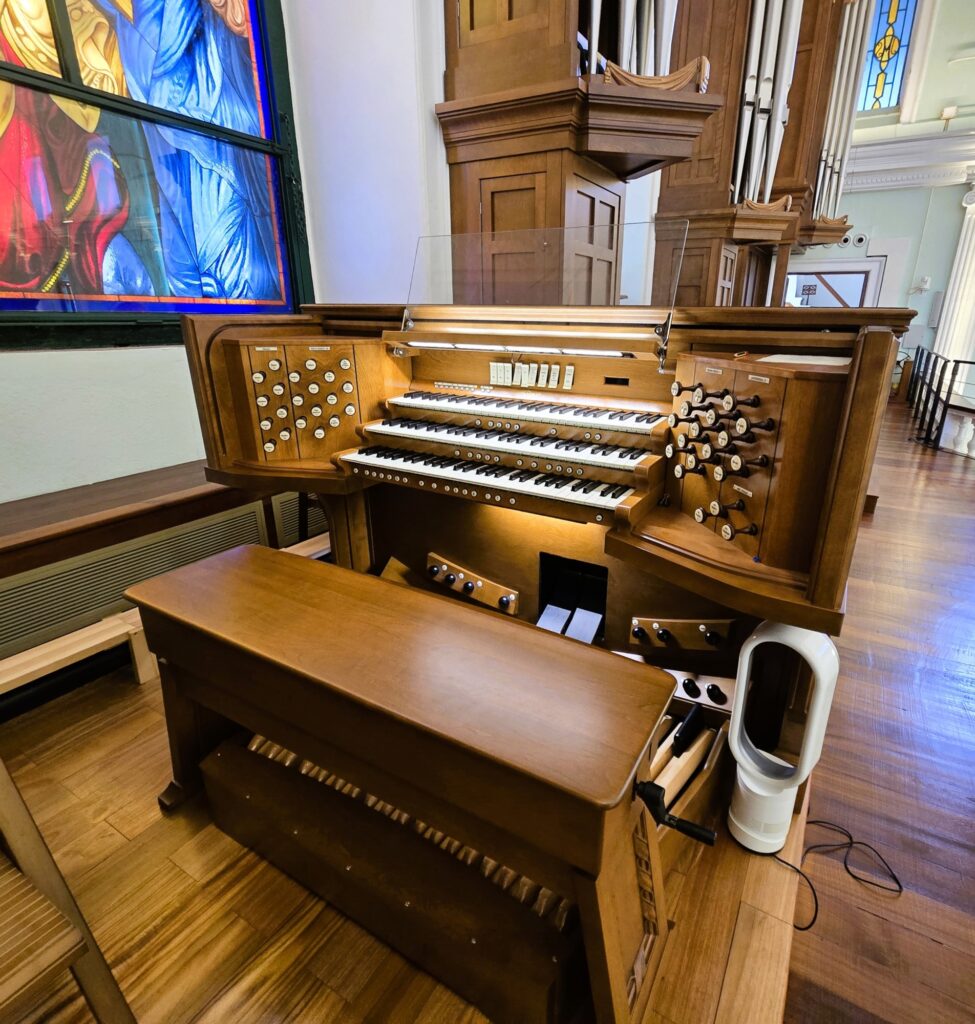

MAC2026b, Antiphonal organ, console
